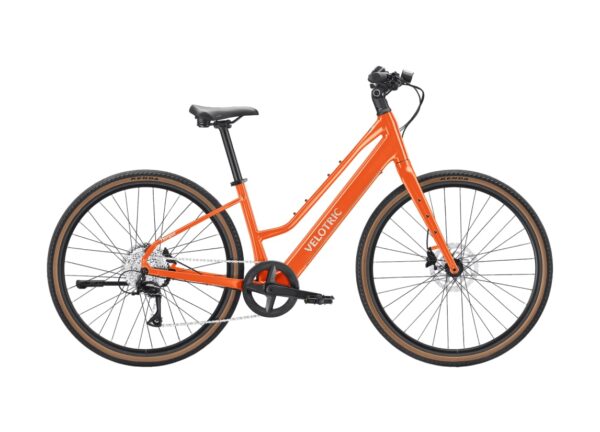

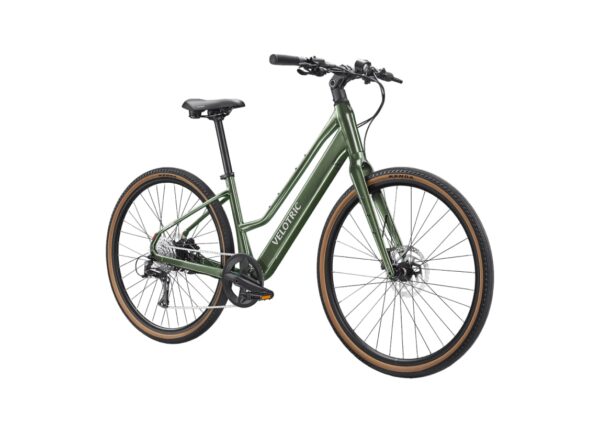

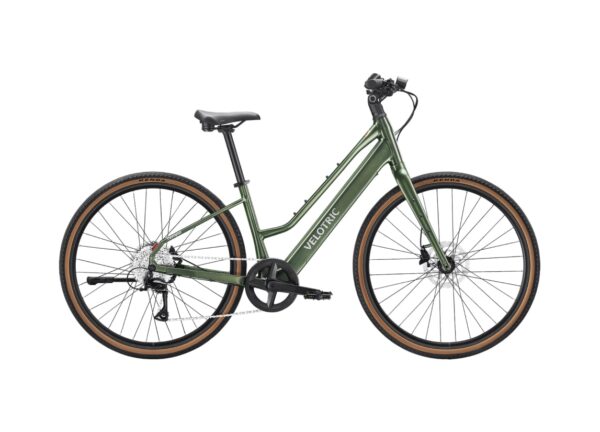

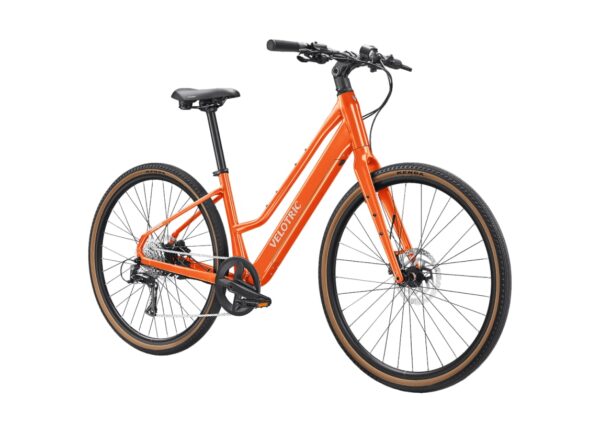

Size Guide – Mid-Step
| Measurement |
Regular |
Large |
| Recommended Rider Height |
4’10” – 5’5″ |
5’3″ – 5’11” |
| Reach |
413 mm |
437 mm |
| Handlebar Height |
1060 mm |
1080 mm |
| Wheelbase |
1122 mm |
1148 mm |
| Stand-Over Height |
521 mm |
724 mm |
| Min Saddle Height |
750 mm |
800 mm |
| Max Saddle Height |
980 mm |
1030 mm |
| Total Length |
1838 mm |
1863 mm |

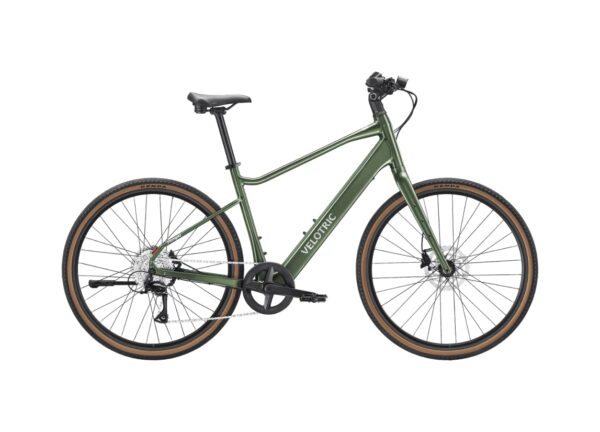

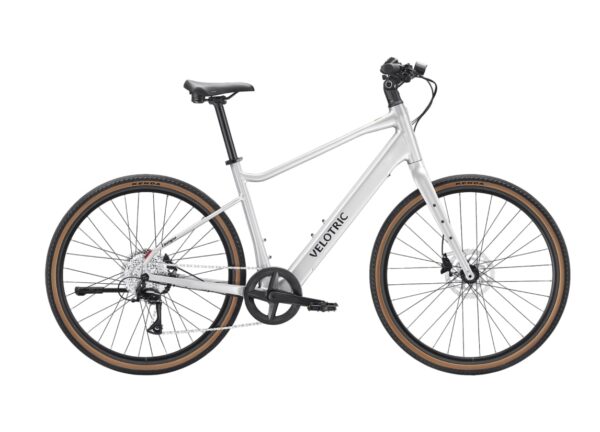

Size Guide – High-Step
| Measurement |
Regular |
Large |
| Recommended Rider Height |
4’11” – 5’8″ |
5’6″ – 6’4″ |
| Reach |
437 mm |
440 mm |
| Handlebar Height |
1060 mm |
1080 mm |
| Wheelbase |
1136 mm |
1148 mm |
| Stand-Over Height |
705 mm |
724 mm |
| Min Saddle Height |
780 mm |
830 mm |
| Max Saddle Height |
1010 mm |
1060 mm |
| Total Length |
1863 mm |
1863 mm |
Specifications
Size Guide
| Bike Size |
Regular / Large |
| User Height Range |
MS/R: 4’10”~5’5”
MS/L: 5’3”~5’11”
HS/R: 4’11”~5’8”
HS/L: 5’6”~6’4”
|
Frameset
| Frame |
6061 Triple-Butted Aluminum Alloy |
| Fork |
6061 Aluminum Alloy, Internal Brake Routing, 12x100mm Thru-axle |
Electronics
| Motor |
36V, 350W, 650W (Peak Power), 45Nm |
| Battery |
36V, 10.14Ah (374Wh), IPX7, Certificated by UL2271 |
| Cell |
Samsung/LG 21700 cell, Certificated by UL2580 |
| Charger |
36V, 2A Fast Charger |
| Sensor |
Torque and Cadence Sensor |
| Display |
2.0″ Left-mounted Full-color Display with High Brightness, Bluetooth, NFC |
| USB Port |
USB Type-C phone Charge |
| Throttle |
Trigger-control, Removable |
| Pedal Assist |
4 Riding Modes + Pulse Mode / Ride Tuning |
| Walk Mode |
2.9 MPH / Walk & Hold |
| Front Light |
500LM High-output Integrated LED, Adjustable Angle |
Lighting & Connectivity
Integrated lights and smart features
| Rear Light |
Braking Indicator, Turn Signal |
| Water Resistant |
IPX6 |
| App |
App OTA |
| Anti-theft |
Apple Find My & Android Find Hub, NFC Card Unlock |
Speed & Range
| Max Speed (Default) |
20 MPH |
| Max Speed Adjustable Range |
12~28 MPH |
| Ebike Class |
Class 1 / 2 / 3 |
| Pedal Assist Range |
60 Miles |
| Throttle Range |
40 Miles |
| Range Note |
Range varies by rider weight, terrain, and assist level |
Drivetrain
| Chainrings |
46T Narrow-Wide Chainring |
| Crankset |
Aluminum Alloy, 170mm |
| Freewheel |
8-speed, 11-40T |
Transmission
| Rear Derailleur |
SHIMANO 8-speed |
| Shift Lever |
SHIMANO 8-speed |
| Chain |
KMC 8-speed |
Brake
| Brake |
SHIMANO Hydraulic Disc Brake |
| Rotors |
180mm Front / 180mm Rear |
| Brake Levers |
Aluminum Alloy, with Power Cutoff |
| System |
Hydraulic braking system |
| Safety |
Motor cut-off when braking |
| Performance |
Reliable braking performance |
Wheel
| Rims |
Aluminum Alloy |
| Front Hub |
NOVATEC Aluminum Alloy, 12x100mm Thru-axle |
Tires
| Tire |
KENDA 700×42c eBike Puncture Resistant Gravel |
| Type |
Gravel / commuter puncture-resistant tires |
Cockpit
| Handlebar |
Aluminum Alloy, Φ31.8mm, 660mm |
| Grips |
Durable Ergonomic Grips, Lockable |
Seat System
| Saddle |
VELOTRIC Comfort Ergonomic Seat |
| Seatpost |
Aluminum Alloy, Φ30.9mm, 350mm |
Controls
| Stem |
Adjustable, Aluminum Alloy, Φ31.8mm, 60mm Length |
| Clamp |
Aluminum Alloy, Quick Release |
Supports
| Pedals |
Plastic |
| Kickstand |
Aluminum Alloy, Included, Rear Mount |
Weight & Load
| Bike Weight |
39 lbs |
| Bike Weight (Without Battery) |
34 lbs |
Max Load
| Max Bike Load Capacity |
330 lbs |
| Usage |
Urban / gravel riding |
Certification
| UL Certification |
UL2849 & UL2271 |
| ISO Standard |
ISO 4210 |
