Geometry

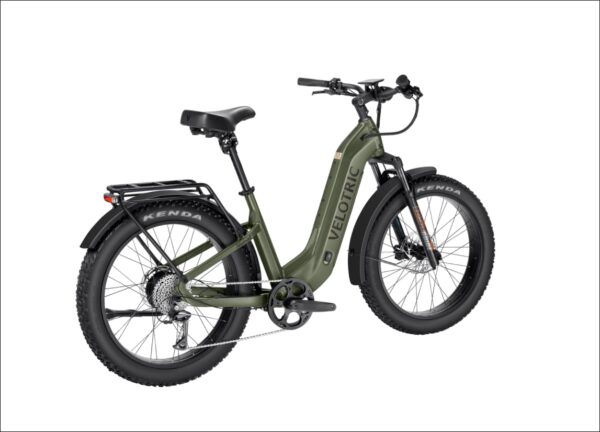

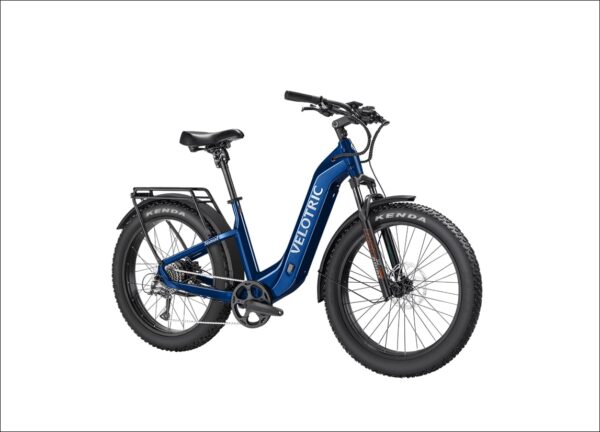

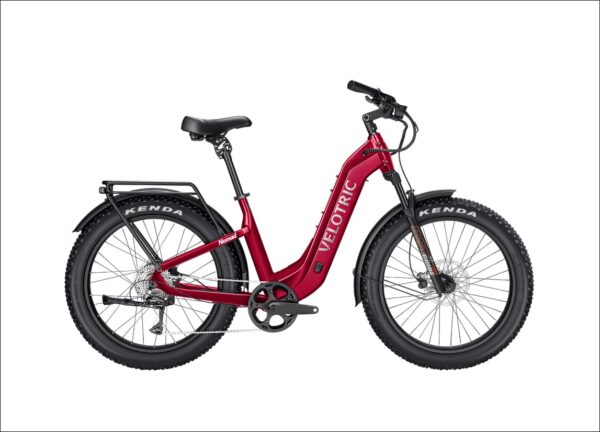

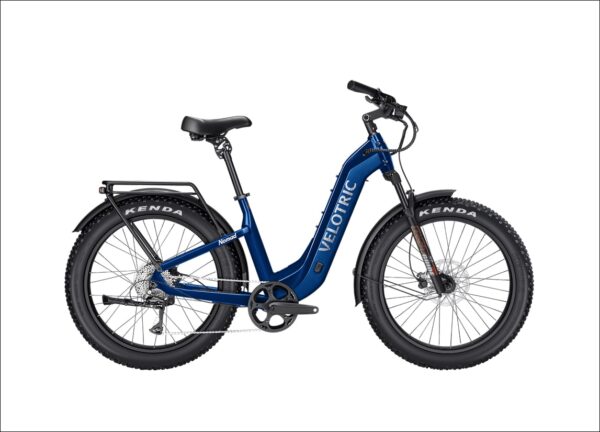

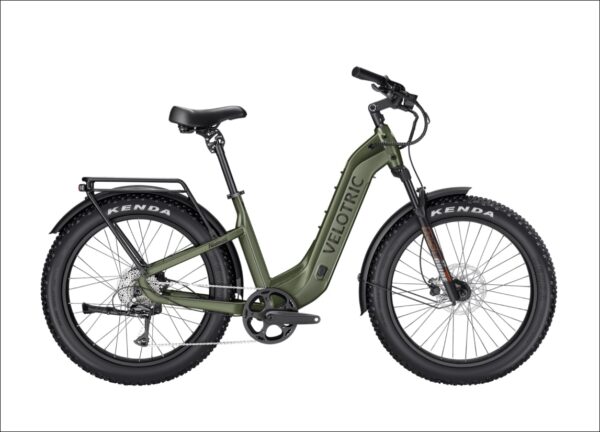

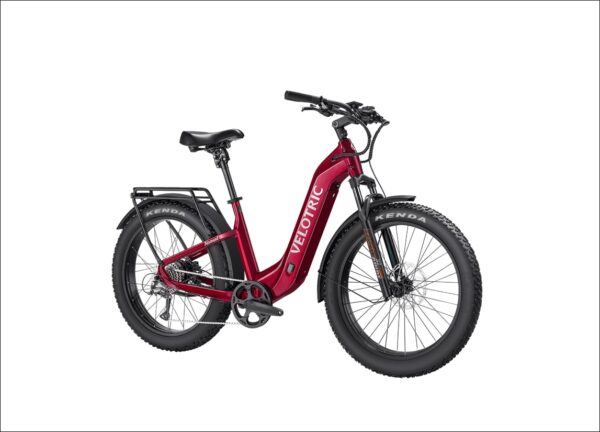

Step-Thru
|
Regular |
Large |
| Height |
5’2” – 5’11” |
5’10” – 6’5” |
| Reach |
413 mm |
413 mm |
| Handlebar Height |
1060 mm |
1060 mm |
| Wheelbase |
1230 mm |
1235 mm |
| Stand-Over Height |
410 mm |
410 mm |
| Min Saddle Height |
850 mm |
900 mm |
| Max Saddle Height |
1070 mm |
1130 mm |

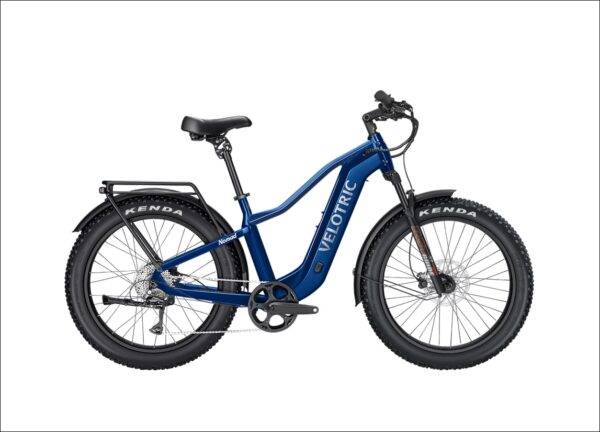

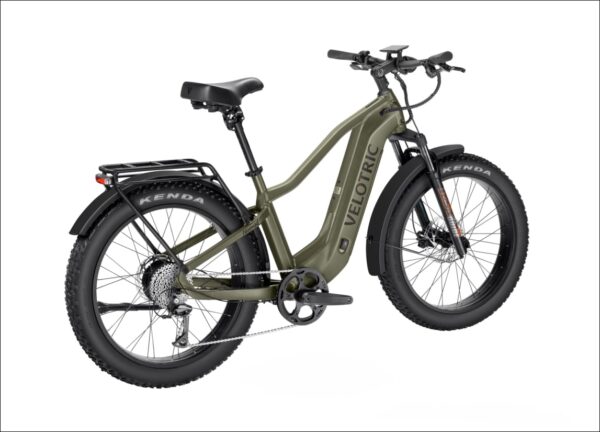

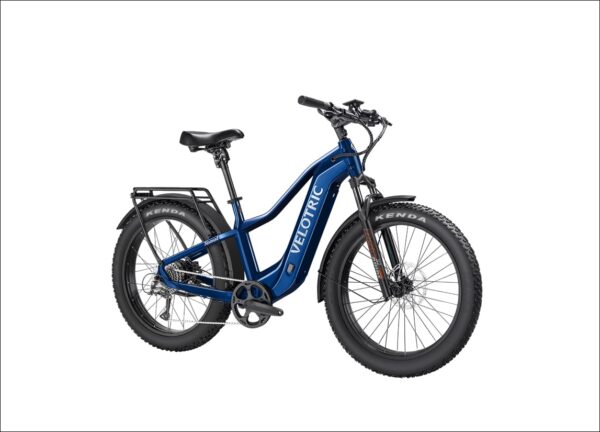

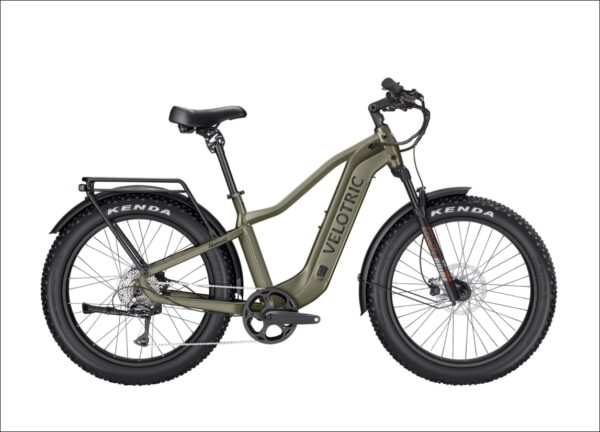

Step-Over (High-Step)
|
Regular |
Large |
| Height |
5’2” – 5’11” |
5’10” – 6’5” |
| Reach |
413 mm |
413 mm |
| Handlebar Height |
1060 mm |
1060 mm |
| Wheelbase |
1230 mm |
1235 mm |
| Stand-Over Height |
720 mm |
745 mm |
| Min Saddle Height |
850 mm |
900 mm |
| Max Saddle Height |
1070 mm |
1130 mm |
Specs & Details
Frameset
| Frame |
Triple-Butted Aluminum Alloy |
| Fork |
RST Hydraulic suspension, 100mm travel with Lock-out, Nutted |
Electronics
| Motor Hub |
48V, 750W, 90Nm |
| Battery |
Removable 48V, 14.7Ah (705.6Wh), IPX7, UL 2271 Certified |
| Cell |
Samsung/LG 21700 cell, UL 2580 Certified |
| Charger |
48V, 3.0A Fast Charger |

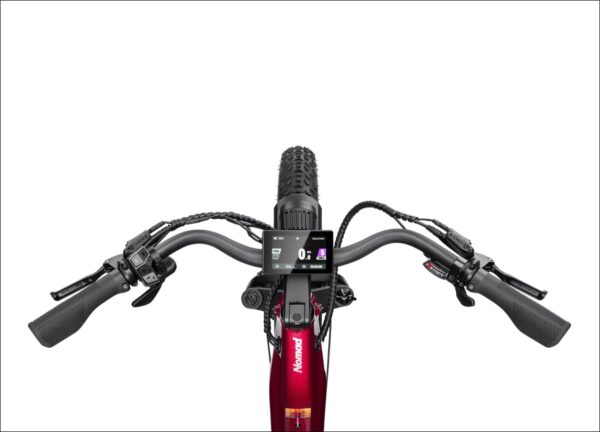

| Display |
3.5″ Full color, High brightness, Bluetooth, Adjustable angle |
| Sensor |
Torque and Cadence Sensor |
| USB Port |
USB Type-C phone charge |
| Throttle Assist |
Trigger-control, removable |
| Pedal Assist |
3 Riding Modes × 5 PAS Levels |
| Walk Mode |
2.9 MPH |
| Front Light |
Light sensing 130 Lux / 500 LM high-output integrated LED, adjustable angle |
| Rear Light |
Braking Indicator, turn signal, steady/flash, integrated with rear rack |
| App & Apple Find My™ |
APP OTA & Find My |
Speed & Range
*Tested with a 187-lb rider using PAS 1 in Eco mode on flat roads.
| Max Speed (Default) |
20 MPH |
| Max Speed Adjustable Range |
20 MPH |
| Class |
2 |
| Throttle Range |
45 Miles |
| Pedal Assist Range |
65 Miles |
Drivetrain
| Chainrings |
48T |
| Crankset |
Aluminum Alloy, 165mm |
| Freewheel |
8-speed, 11-40T |
| Chain |
8-speed |
| Rear Derailleur |
SHIMANO 8-speed |
| Shift Lever |
SHIMANO 8-speed |
Brakes
| Brake |
Tektro Hydraulic Disc Brake |
| Rotors |
203mm Front / 180mm Rear |
| Brake Levers |
Aluminum Alloy, with power cutoff |
Wheels
| Rims |
Aluminum Alloy |
| Front Hub |
Aluminum Alloy, nutted |
| Tires |
KENDA 26 × 4.0″ eBike puncture-resistant tires |
Cockpit
| Handlebar |
Aluminum Alloy, Φ31.8mm, 680mm(R) / 700mm(L) |
| Grips |
Durable ergonomic grips, lockable |
| Stem |
Adjustable, Aluminum Alloy, Φ31.8mm, 60mm(R) / 90mm(L) |

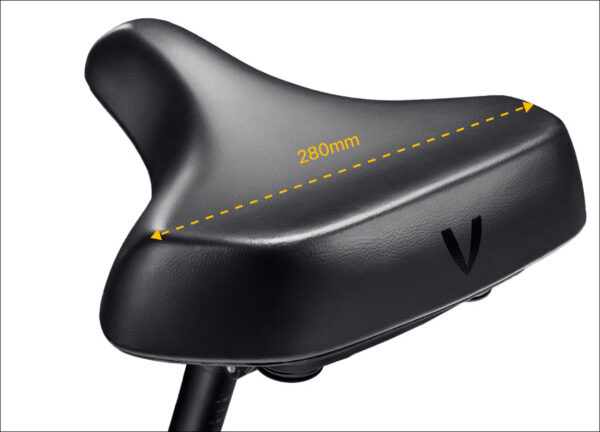

| Saddle |
VELOTRIC Comfort Ergonomic Seat |
| Seatpost |
Aluminum Alloy, Φ30.9mm, Suspension |
| Clamp |
Aluminum Alloy, quick release |
Supports
| Fenders |
Front & rear full coverage |
| Rear Rack |
MIK HD Compatible Alloy |
| Pedals |
Plastic |
| Kickstand |
Aluminum Alloy, included, rear mount |
Weight & Load
| Bike Weight |
75 lbs |
| Max Bike Load |
505 lbs |
| Rear Rack Load Capacity |
66 lbs |
Certification
| UL Certification |
UL 2849 |
| ISO Standard |
ISO 4210 |
