Size Guide
| Measurement |
Small |
Medium |
Large |
| Recommended Rider Height |
5’3’’~5’9’’ |
5’7’’~6’1’’ |
5’11’’~6’5’’ |
| A. Max Seat Height |
905 mm (36’’) |
965 mm (38’’) |
1010 mm (40’’) |
| B. Min Seat Height |
830 mm (33’’) |
905 mm (36’’) |
950 mm (37’’) |
| C. Handlebar Grips Height |
1100 mm (43’’) |
1120 mm (44’’) |
1130 mm (44’’) |
| D. Seat Tube Length |
421 mm (17’’) |
463 mm (18’’) |
498 mm (20’’) |
| E. Wheelbase |
1065 mm (42’’) |
1093 mm (43’’) |
1122 mm (44’’) |
| F. Overall Length |
1766 mm (70’’) |
1795 mm (71’’) |
1824 mm (72’’) |
| G. Wheel Diameter |
702 mm (28’’) |
702 mm (28’’) |
702 mm (28’’) |
| H. Top Tube Length (effective) |
594 mm (23’’) |
618 mm (24’’) |
653 mm (26’’) |
| I. Head Tube Length |
152 mm (6’’) |
170 mm (7’’) |
180 mm (7’’) |
| J. Standover Height |
779 mm (31’’) |
804 mm (32’’) |
833 mm (33’’) |
Specifications
General Info
| Model |

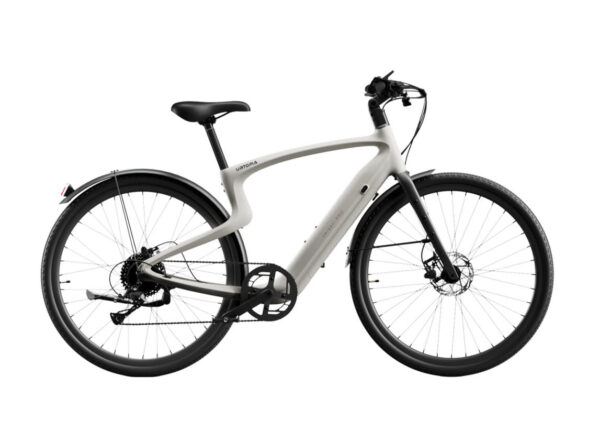

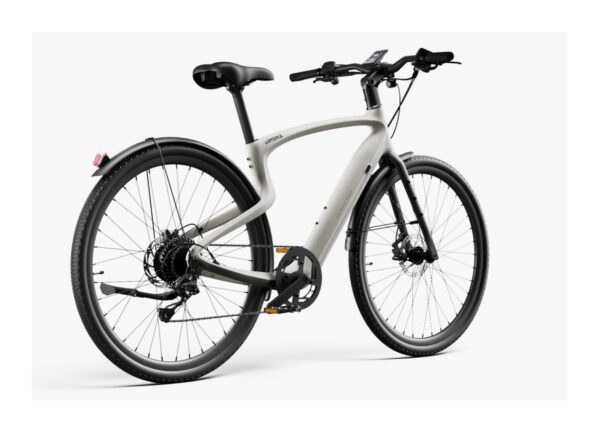

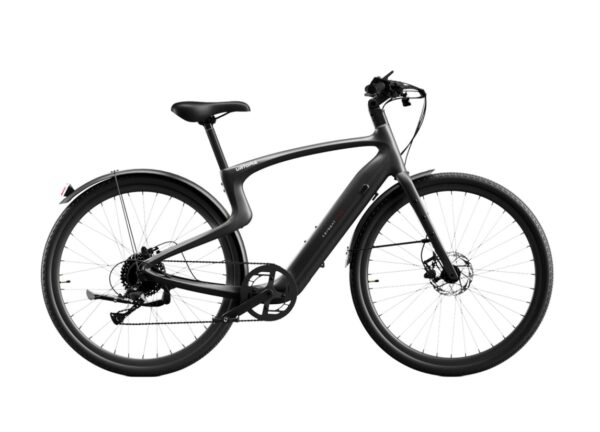

Carbon Classic Lightweight E-bike |
| Net Weight |
38 lbs w/o accessories |
Frame
| Material |
Carbon fiber (frame, fork) |
| Range |
Up to 75 miles |
Performance
| Top Speed |
20 mph by default |
| Unlock Speed |
25 mph upon unlock |
| Total Weight Limit |
240 lbs |
| Rider Height |
5’3” – 6’5” |
| Brakes |
TEKTRO hydraulic disc brake with power cut-off sensor |
| Wheels |
700C (ISO 622mm BSD) |
| Tires |
40C (45C max.) puncture-proof tire |
| Water Resistance |
IP65 |
| Range Test |
Tested with 180 lb rider in ECO mode on flat roads |
| Frame Type |
Lightweight carbon design |
| Use Case |
Urban & road riding |
Ebike System
High-performance electric drivetrain system
| Class |
Class 2 |
| Motor |
750W (peak) rear hub motor, 60Nm torque |
| Battery |

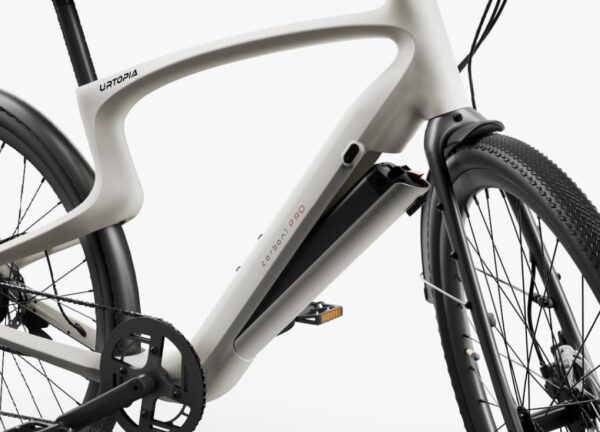

352.8Wh Samsung Li-ion, UL-2271 certified, removable |
| Pedal Assist |
5 levels |
Electronics
| Charger |
2.5H fast charger |
| Display |

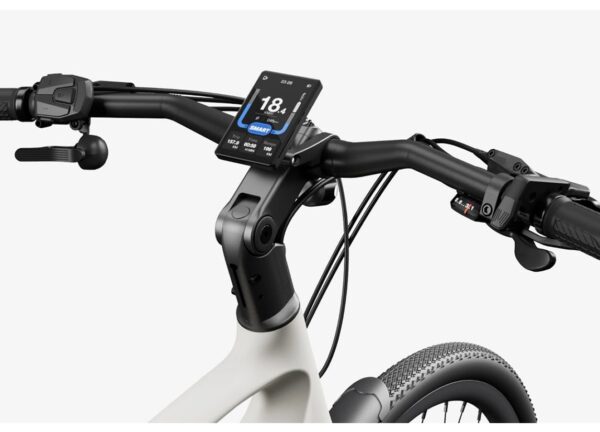

3.5” Color LCD display |
| Sensors |
Torque sensor |
| Front Light |
External light, 30 Lux |
| Rear Light |
External rear light (Not ARES lights) |
| Lighting Type |
External lighting system |
Drivetrain
| Chainrings |
44T |
| Crankset |
Aluminum alloy, 170mm |
| Cassette |
11-40T, 8 Speed |
Transmission
| Chain |
Shimano 8 speed |
| Rear Derailleur |
Shimano 8 speed |
| Shift Lever |
8 Speed Trigger |
Pedals
| Type |
9/16” Alloy Platform |
| Material |
Alloy |
| Design |
Platform style |
| Grip |
Anti-slip |
| Durability |
High strength alloy |
| Standard |
Universal 9/16″ |
Cockpit
| Grips |
Durable ergonomic grips, lockable |
| Seat Post |
Aluminum Alloy φ31.6mm |
Seat Post Size
| Size M & L |
300mm |
| Size S |
250mm |
Battery Certification
| Certification |
UL-2271 |
| Cell Type |
Samsung Li-ion |
