BRAND WARRANTY
5-year frame warranty
Frame Geometry
| Measurement |
41 cm |
44 cm |
48 cm |
54 cm |
| A. Seat Tube Length |
410 mm |
440 mm |
480 mm |
540 mm |
| B. Top Tube Length |
630 mm |
630 mm |
640 mm |
665 mm |
| C. Chain Stay Length |
445 mm |
445 mm |
445 mm |
445 mm |
| D. Bottom Bracket Offset |
5 mm |
5 mm |
5 mm |
5 mm |
| E. Head Tube Length |
120 mm |
120 mm |
130 mm |
140 mm |
| α. Head Tube Angle |
66° |
66° |
66° |
66° |
| β. Seat Tube Angle |
75° |
75° |
74° |
74° |
| Standover Height |
800 mm |
830 mm |
860 mm |
890 mm |
| Wheelbase |
1237 mm |
1237 mm |
1244 mm |
1269 mm |
| Reach |
465 mm |
465 mm |
467 mm |
489 mm |
| Stack |
615 mm |
615 mm |
624 mm |
633 mm |
Specifications
Drive System
| Drive Unit |
Bosch CX Smart System |
| Battery |
Bosch PowerTube 750 Wh Smart System |
Charging
| Charger |
Bosch Smart System 4A |
| Charging Time |
Approx. 6 hours |
Electronics

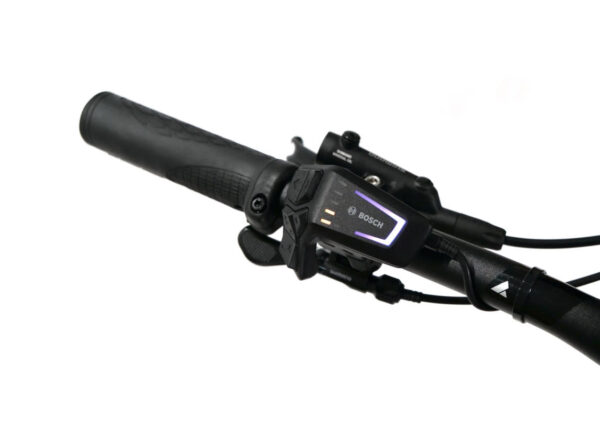

| Display |
Bosch LCD Remote |
| System |
Bosch Smart System |
| Motor Type |
Mid-drive motor |
| Battery Type |
Bosch PowerTube integrated battery |
| Battery Capacity |
750 Wh |
| Charging Interface |
Bosch Smart System charger |
| Assist Modes |
Multiple Bosch assist levels |
| Controller |
Bosch Smart System control interface |
| Connectivity |
Integrated Bosch ecosystem |
| Firmware |
Updatable Bosch Smart System firmware |
| Integration |
Fully integrated Bosch eBike system |
Frameset
Frame and suspension components
| Frame |
Aluminum 6061 |
| Fork |
Suntour Durolux 36 RC2 Boost 29, 150 mm |
| Rear Shock |
Suntour RS19 TRIAir 3CR, 150 mm |
| Frame Type |
Full suspension aluminum frame |
Drivetrain
| Derailleur |
Shimano XT RD-M8100-SGS |
| Gears |
12-speed |
| Crankset |
EThirteen CR4USM-100, eSpec Direct Mount, 34T |
| Cassette |
Shimano CS-M6100, 10-51T |
| Gear Range |
Wide range cassette for steep climbs |
| Drivetrain Type |
12-speed Shimano drivetrain |
Brake
| Brakes |
Shimano BR6120 4-piston / 6100 2-piston hydraulic disc |
| Rotors |
203 mm front / 203 mm rear |
| Brake Type |
Hydraulic disc brake system |
| Brake Performance |
High power multi-piston braking |
| Brake Material |
Aluminum alloy brake components |
| Safety |
High-performance braking stability |
Wheel
| Hubs |
Shimano HB-MT400-B / FH-MT510-B |
| Rims |
Ryde Disc 30 |
Tires
| Tires |
Schwalbe Magic Mary Super Gravity 65-622 (29 x 2.60) / Hans Dampf Super Gravity 65-584 (27.5 x 2.60) |
| Type |
High-grip MTB enduro tires |
Cockpit
| Handlebar |
BULLS MTB Alloy, Dia 31.8 mm, 760 mm, 25 mm rise, 9° backsweep |
| Stem |
MTBi, CCS Slot Mount ready |
Seat System
| Seatpost |
Limotec A1-Z dropper post, 30.9 mm |
| Seat |
Selle Royal Vivo Ergo |
Pedals
| Pedals |
BULLS MTB |
| Type |
Platform MTB pedals |
Weight
| Bike Weight |
59.9 lbs |
| Note |
*Specifications subject to change without notice |
